Plywood Trimming Saw

Plywood Trimming Saw

High speed

High cutting precision

High working efficiency

Advanced technology

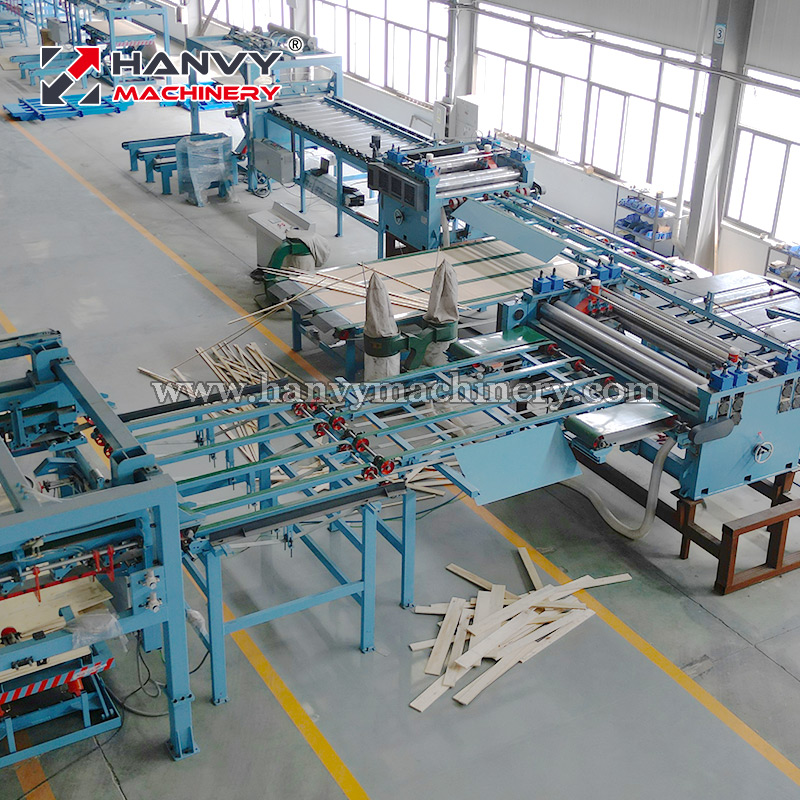

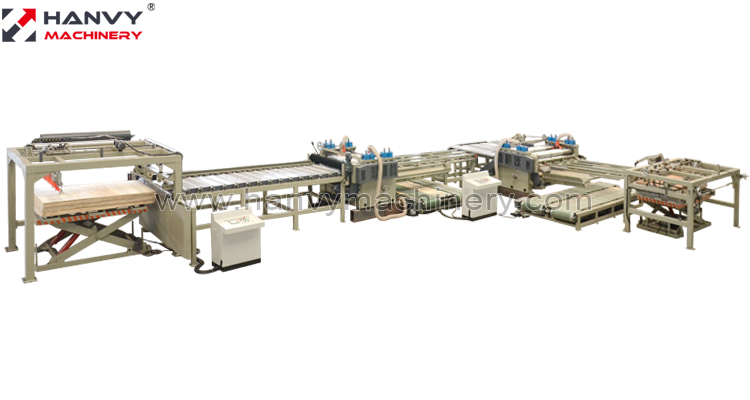

This machine is used to cut the rough plywood to standard sizes. It is made up of six parts: vertical feeding, conveyor, vertical saw, vertical output conveyor, turning conveyor, horizontal saw, and horizontal output conveyor. This saw is high-efficient, high-speed, is good equipment for plywood production.

Model ZHJ4x8A
Lengthways saw side size 915~1220 mm
Transverse saw side size 1830~2440 mm
Veneer max thickness 30 mm
Saw diameter and quantity Ø300 mm/4
Saw speed 6900 rpm
Transport speed 15~70 m/min
Total power 39.5 kw
Lengthways saw size 2800x1800x1600 mm
Transverse saw size 3600x1800x1600 mm
Weight 12000 kg


CNC type is optional.

Customers could choose the High speed Edge Sawing and Sanding Production Line, which integrates conveying , sawing, sanding and stacking.

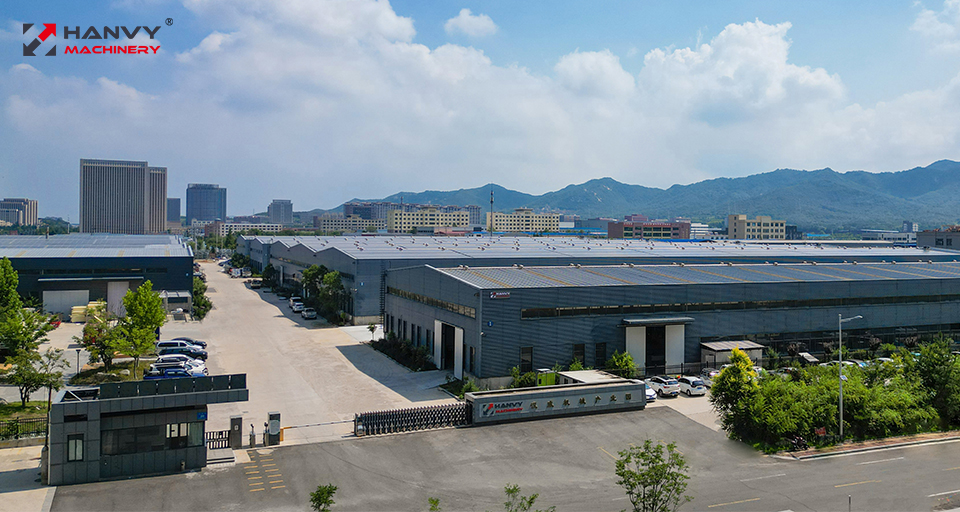

Weihai BaiShengYuan Industry is a woodworking machine manufacturer since 1956.

We won praise from overseas customers for good quality products and intimate service.

Products are exported to more than 50 countries and regions.

We’ve passed the ISO9001:2018 quality management system certification and the CE certification.



The Group always focus on new technology development. It self-owns the Provincial Woodworking Machinery Technology Development Center which is funded by the government. With the support from the Technology Development Center and all the efforts contributed by the engineers, the Group has successfully developed the most advanced plywood production line in China. Such production line has been set up in several countries, including Romania, Turkey, Russia, Indonesia, Malaysia, India, Bangladesh, Chile, Argentia etc.
