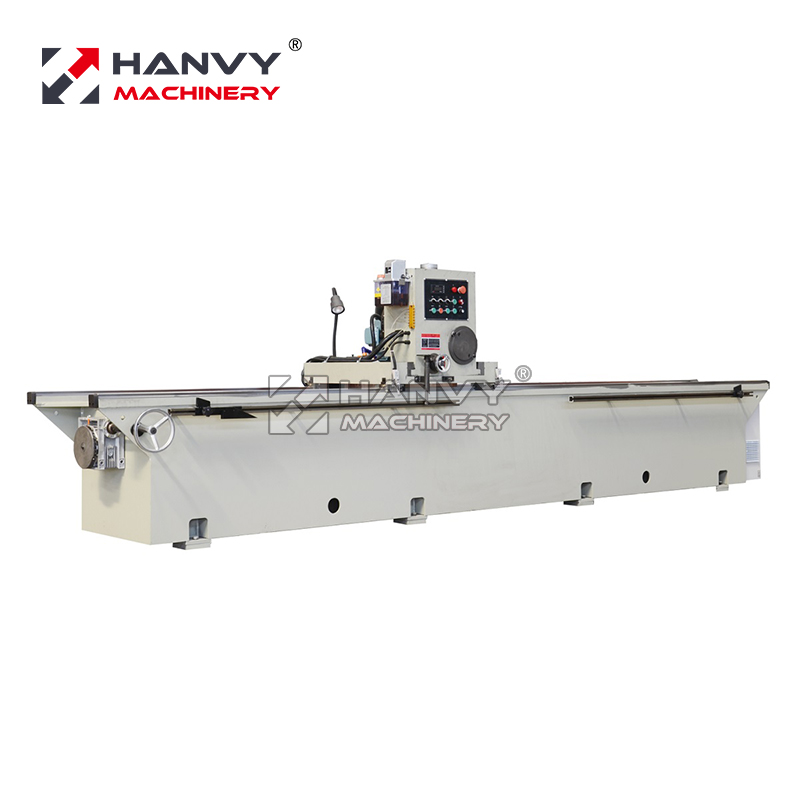

Knife Grinder BMD1500C

Knife Grinder

Model: BMD1500C

Type: Precision linear guide

Voltage: 220V/380V/Customized

Low voltage appliance: Schneider

Max. Grinding length: 1500mm


The knife grinder is slot type automatic grinding lathe, specialized in grinding various types of straight blade cutting tools at different angles, different size, suitable for wood processing workshop of furniture and construction lines etc.

We could provide 1500mm,2000mm,3000mm,3500mm,4000mm,4500mm working length for your choice.

Features:

*With precision linear guide rail, it ensures the running accuracy of grinding.

*The grinding head motor adopts a specialized motor that ensures high precision working performance and convenient cooling.

* It’s equipped with lubricating system ensures sufficient lubrication to achieve higher durability.

*The Feeding system is driven by ball screw.

Model BMD1500C
Max. Grinding length mm 1500
Grinding head speed r/min 1400
Grinding head motor kw 4/7.5
Electromagnetic worktable mm 180×1520
Stroke speed m/min 0-16.5
Total power kw 5.8
Tilting range of worktable 90°
Overall size mm 3040x1700x1380
Weight kg 1500



Weihai BaiShengYuan Industry is a woodworking machine manufacturer since 1956.

We won praise from overseas customers for good quality products and intimate service.

Products are exported to more than 50 countries and regions.

We’ve passed the ISO9001:2018 quality management system certification and the CE certification.

BSY product line centers on a range of standard and special plywood machines that includes plywood plant , Log debarker, veneer single-spindle rotary lathe, veneer spindle-less rotary lathe, combined rotary lathe, log charger, log conveyor, veneer guillotine, plywood performing press, Veneer Dryer, plywood Edge Trimmer, plywood Sander , etc.
